Nukeproof - MTB Bicycle - Tracker 297 FS Sport Deore 1x12 TRF01As

Name: Nukeproof - MTB Bicycle - Tracker 297 FS Sport Deore 1x12 TRF01As
Brand: Nukeproof
SKU: Nuke-B-Tracker-FS-Black26-S_AE
Price: 2949.0 USD
Availability: OutOfStock

SKU: Nuke-B-Tracker-FS-Black26-S_AE

$2,949.00 USD

Shipping calculated at checkout.

Overview

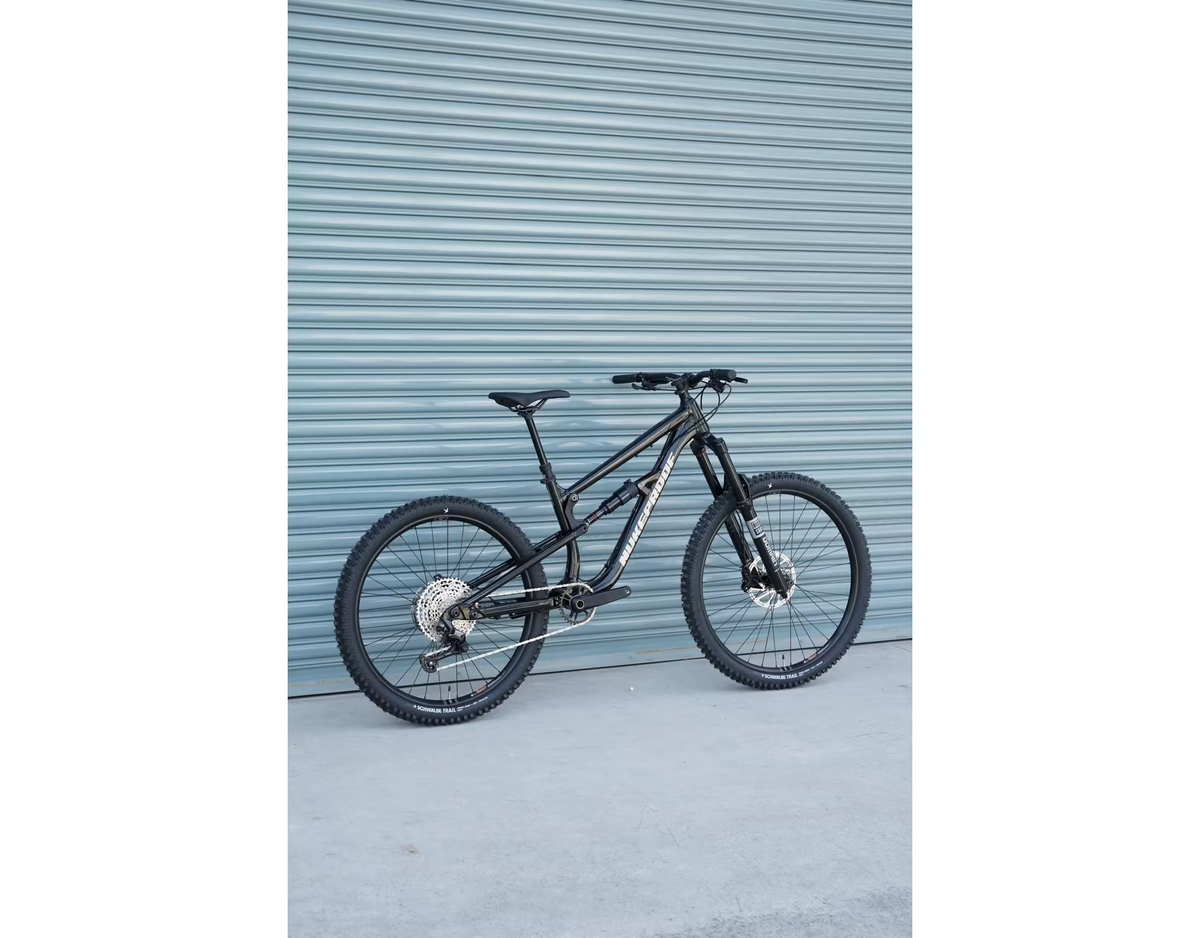

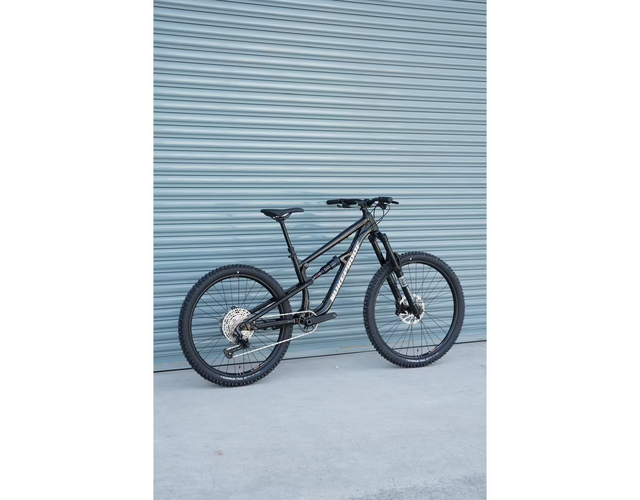

Take on the trails with the Nukeproof Tracker FS, a full-suspension mountain bike built for confident handling, reliable performance, and offroad adventures. Featuring a durable aluminum frame, RockShox suspension, and a Shimano Deore 12-speed drivetrain, the Tracker FS delivers a capable riding experience across varied terrain.

Key Features

Aluminum Frame: Built with a durable aluminum frame that provides strength, stability, and reliable performance for off-road riding.

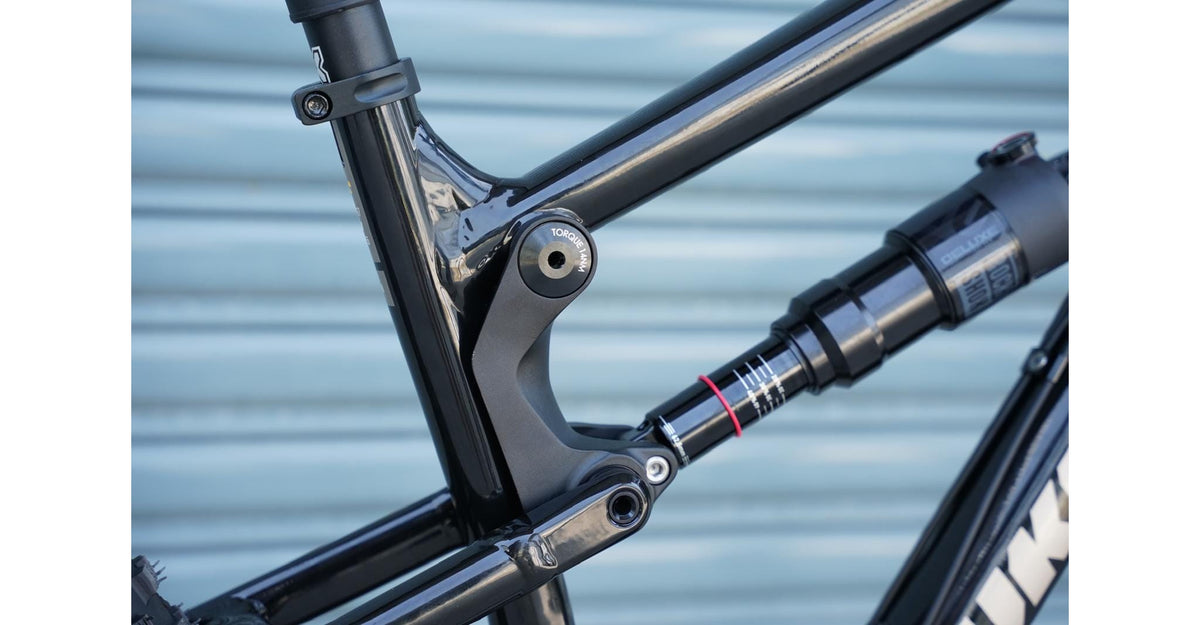

RockShox Suspension: Domain Gold R fork with 170mm travel and Deluxe Select rear shock.
Shimano Deore 12-Speed: Wide-range 10-51T cassette for versatile trail riding.
SRAM DB4 Brakes: Reliable braking control.
Schwalbe Magic Mary Tires: 2.4" tires for off-road traction.

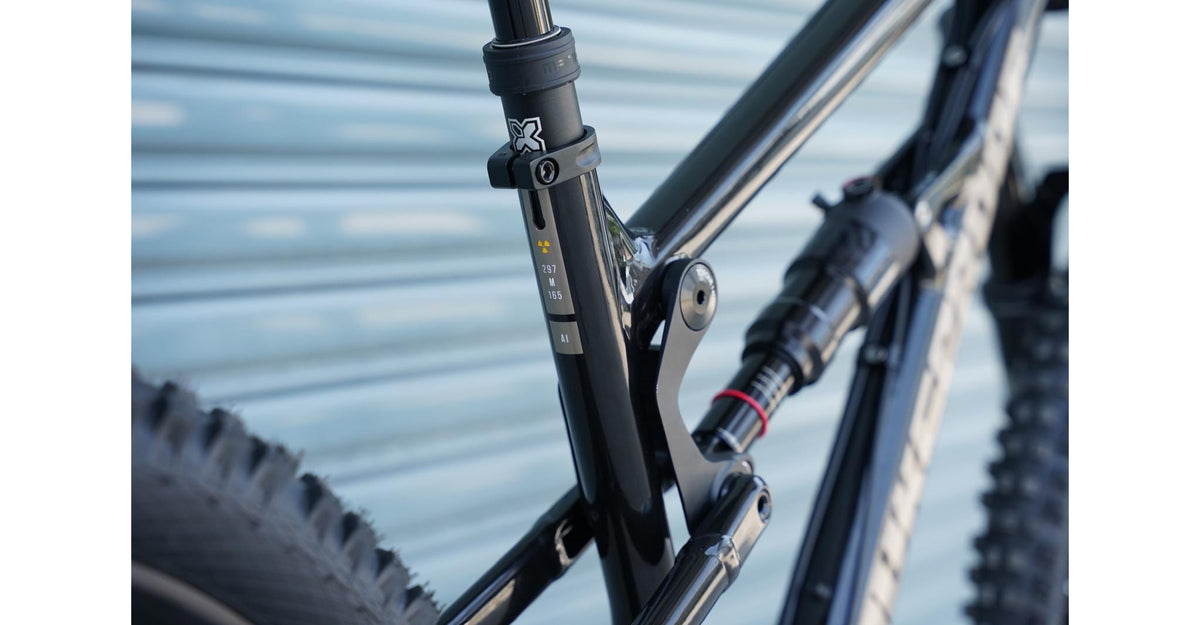

Dropper Seatpost: X-Fusion Manic LC 150mm.
Color: Black/Bronze with glossy finish.

Specifications

General

Brand: Nukeproof

Model: Tracker FS

Item Number: SBITRFNKP002

EAN: 5400928761734

Warranty: Lifetime transferable warranty after registration within 30 days of purchase, with required annual servicing at an authorized dealer.

Frame & Fork

Fork: RockShox Domain Gold R 29", 44mm Offset, 170mm

Rear Shock: RockShox Deluxe Select 230x62.5

Material: Aluminum

Size: M

Drivetrain

Groupset: Shimano Deore M6200 12-Speed

Cassette: Shimano Deore M6100 Hyperglide+ 12-Speed, 10-51T

Rear Derailleur: Shimano Deore M6100, 12-Speed, Max 51T

Pedals: Not Included

Brake Type: Post Mount

Front Brake: SRAM DB4 Brakeset

Rear Brake: SRAM DB4 Brakeset

Paint

Color: Black/Bronze

Design Code: trf01as

Paint Finish: Glossy

Wheels & Tyres

Tyres: Schwalbe Magic Mary 2.4" Standard Soft

Cockpit & Saddle

Handlebar: Nukeproof Electron Handlebar, 780mm Wide, 25mm Rise

Stem: Tracker Alloy, 40mm Length, 31.8mm Clamp, 7° Rise

Seatpost: X-Fusion Manic LC 150mm, 31.6mm

Warranty & Important Information

Lifetime transferable warranty upon registration within 30 days of purchase, subject to required annual servicing at an authorized dealer and manufacturer warranty terms.

Please Note: Pedals are not included. Product specifications may be subject to manufacturer updates.

Frame Geometry

Nukeproof Tracker FS – Frame Geometry

Frame geometry measurements are in millimeters unless otherwise indicated.

Geometry	S 297	M 297	L 297	XL 297	XXL 297
A – Reach	430	455	475	495	515
B – Stack	639	639	639	648	657
C – Effective Top Tube	571.7	596.7	610.9	633	654.7
D – Seat Tube Length	380	410	440	460	480
E – Effective Seat Tube Angle	77.5°	77.5°	78°	78°	78°
F – Actual Seat Tube Angle	71°	71°	71.5°	71.5°	71.5°
G – Saddle Height for Saddle Offset	650	700	750	800	850
H – Saddle Offset at Saddle Height	142.22	158.59	166.66	181.58	196.49
I – Head Tube Length	120	120	120	130	140
J – Head Tube Angle	64.5°	64.5°	64.5°	64.5°	64.5°
K – Chainstay Length	435	435	435	435	435
L – Front Centre	757.7	792.7	812.7	837	861.2
M – Wheelbase	1192.7	1227.7	1247.7	1272	1296.2
N – Bottom Bracket Drop	30 / 10	30 / 10	30 / 10	30 / 10	30 / 10
O – Bottom Bracket Height	345	345	345	345	345
P – Stand Over Height	721.75	720.28	721.3	720.73 / 730.78	726.77 / 736.07
Q – Fork Travel	170	170	170	170	170
R – Trail	132.33	132.33	132.33	132.33	132.33
S – Fork Offset	44	44	44	44	44
T – Axle to Crown	582	582	582	582	582
U – Maximum Seatpost Insert	250	250	255	275	300

Geometry measurements are provided for reference. Actual fit may vary based on rider proportions and preferences.

Size Guide

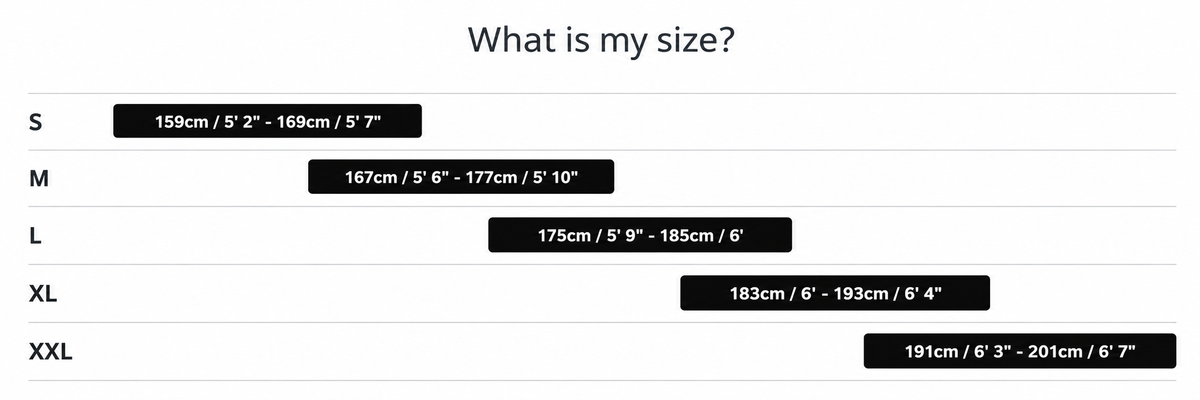

Rider Height Guide

Recommended rider height ranges by frame size.

S

5'2" – 5'7"

159 – 169 cm

M

5'6" – 5'10"

167 – 177 cm

L

5'9" – 6'0"

175 – 185 cm

XL

6'0" – 6'4"

183 – 193 cm

XXL

6'3" – 6'7"

191 – 201 cm
