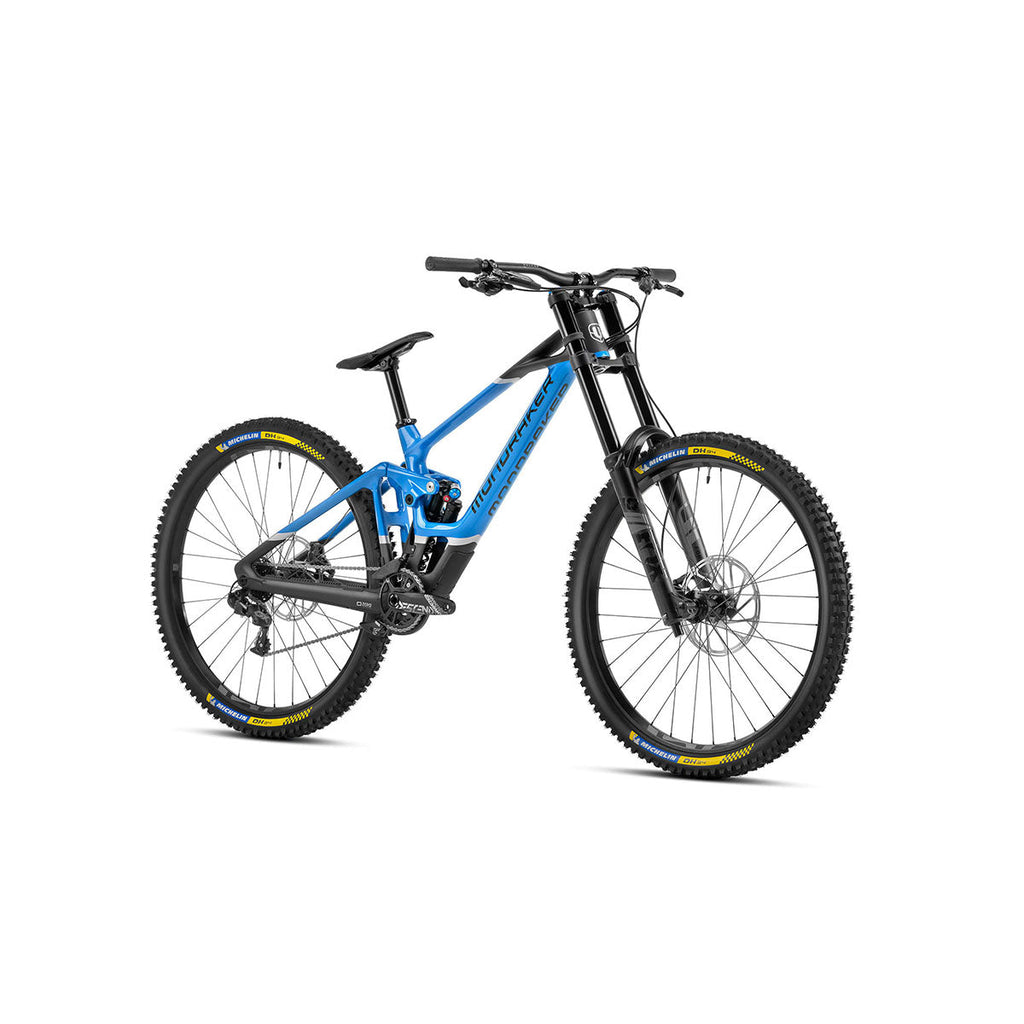

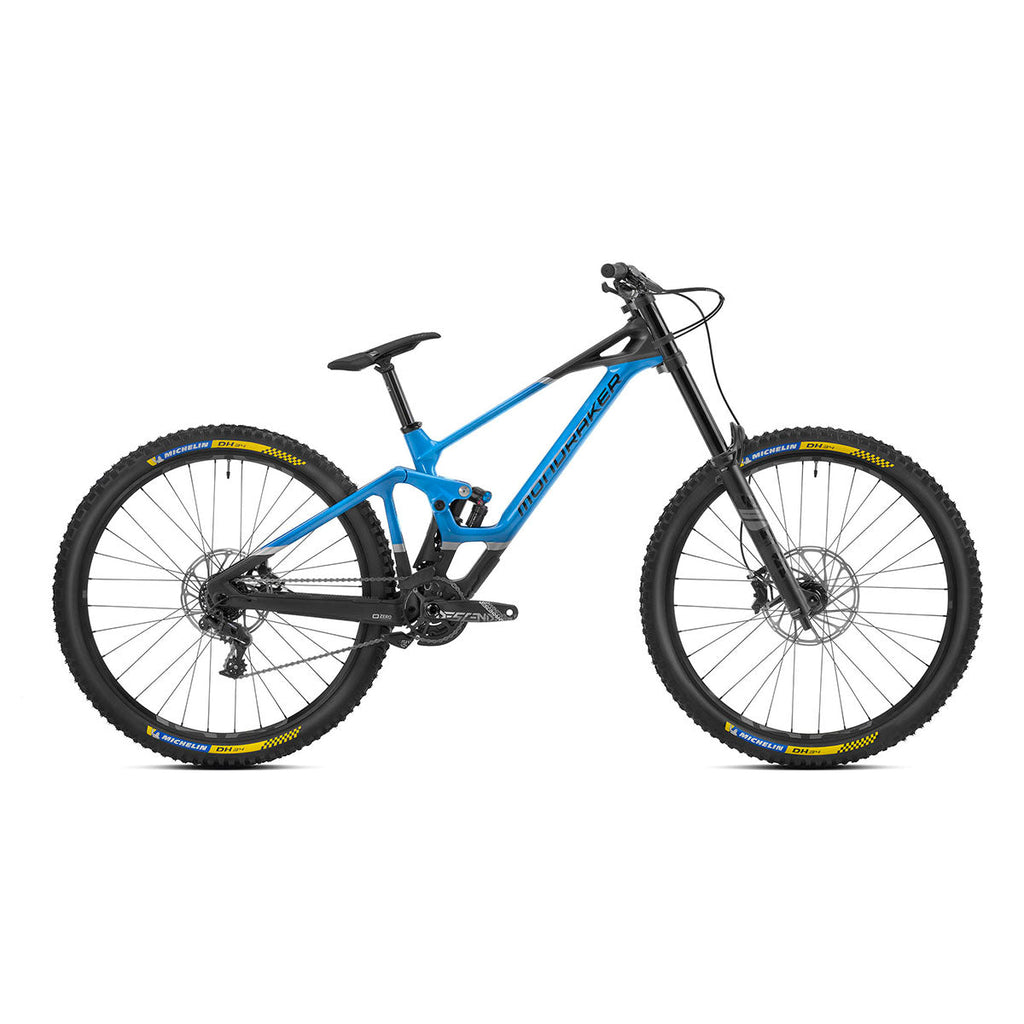

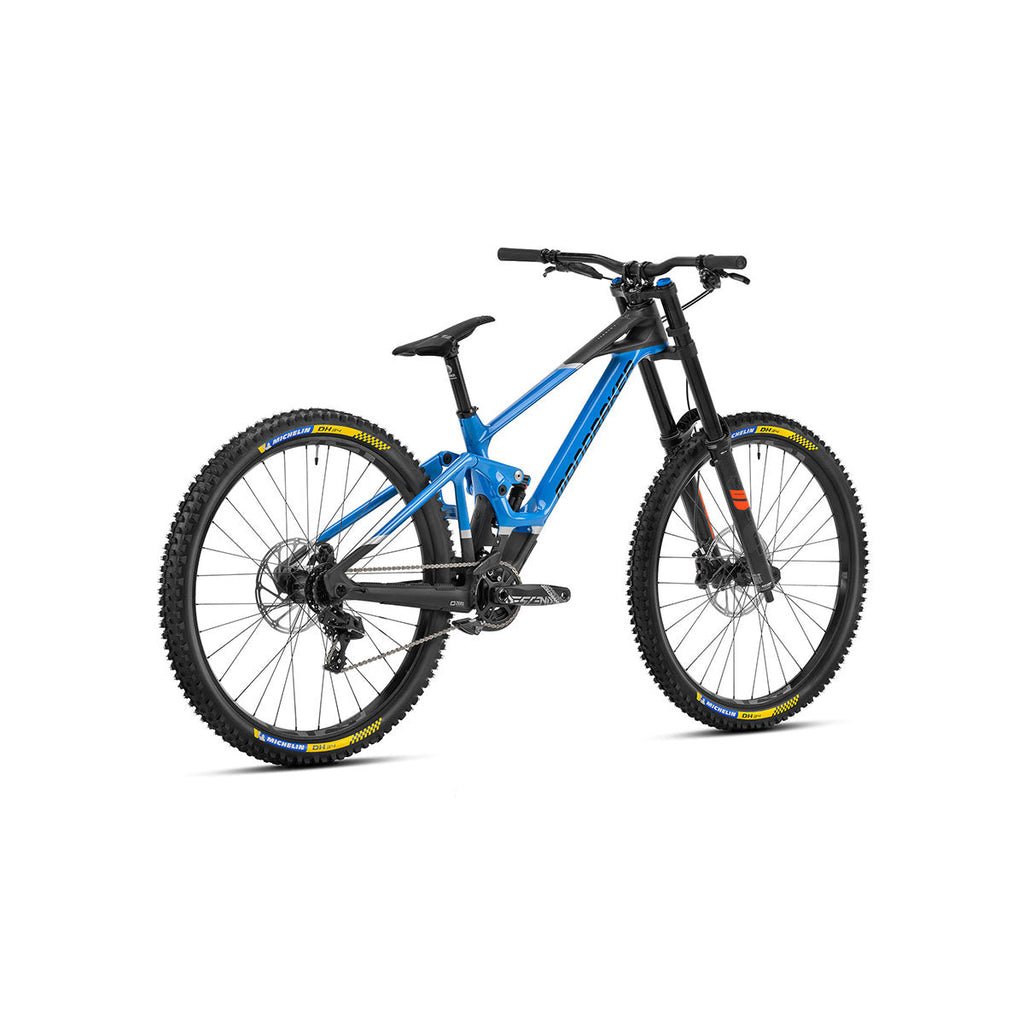

Mondraker - SUMMUM CARBON R Bike - Blue/Carbon/Silver (DOWNHILL)

SKU: MOND-B-Sum-CarbR-Blue23-S
$6,719.00 USD $9,799.00
Shipping calculated at checkout.

Size
Color: Blue-Carbon-Silver

NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.

DESCRIPTION

Sizes: S: 400mm / M: 400mm / L: 400mm / XL: 400mm
Colors: Gloss Marlin Blue / Matte Carbon / Racing Silver

Summum is Mondraker’s flagship bike, that boasts a world championship-winning design for ultimate downhill rides! Summum Carbon R 29 uses HHG Internal Cable Routing for a minimalistic, clean design. Now available with MX Wheel option which has 29" front wheel and 27.5" rear wheel, for optimum performance on DH tracks.

Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Downhill riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.

The compact and lighter stealth carbon frame and HHG internal cable routing help with resistance and mobility for better speed and performance. Mondraker’s proprietary Stealth carbon construction uses specific positioning and direction of carbon fibers to optimize benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.

Summum Carbon R 29 sports high-performance front and rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes. Summum is loaded with additional features like dual raw enduro bearings, super-boost rear axle, and hydroformed tubing for traction and control.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual raw Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit (EU only)

SIZES

S: 400mm / M: 400mm / L: 400mm / XL: 400mm

REAR SHOCK

Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

SHOCK SETTINGS

ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs

FORK

Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload

HEADSET

Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45°x45° ACB sealed bearings, geometry kit cups, external diameter 56mm

STEM

Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy,2x6mm spacer

HANDLEBAR

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep,31.8mm barbore

GRIPS

Onoff Desert, 1lock-on, 135mm

SEATPOST

SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment

SADDLE

SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides

FRONT BRAKE

Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backedmetal sintered pads

REAR BRAKE

Sram Code R, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backedmetal sintered pads

BRAKE LEVER

Sram Code R, tool-free reach adjust

RIMS

e*thirteen LG1 Plus DH, IW29 29” Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes

SPOKES

e*thirteen custom Hive triple-butted black alloy, alloy nipples, nipple washers

FRONT HUB

e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

REAR HUB

e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts

FRONT TIRE

Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead

REAR TIRE

Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing,wire bead

CRANKSET

Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm

RINGS

34T, steel, X-SYNC

BOTTOM BRACKET

Sram DUB BSA, sealed bearings, 83mm

PEDALS

-

CHAIN

Sram PC1110 11s, Powerlock

FRONT DERAILLEUR

E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider

REAR DERAILLEUR

Sram GX DH, 7s, medium cage, X-actuation 1:1

SHIFT LEVERS

Sram trigger GX DH 7s, X-actuation 1:1

CASSETTE

Sram PG 720 11-25T, 7s

MOTOR

-

BATTERY

-

DISPLAY

-

DERAILLEUR HANGER

-

OTHERS

*Optional geometry kit: +-1° / +-2° headset cups

WEIGHT

16.9 kg




GEOMETRY

MEASUREMENTS / GEOMETRY (Click on image to expand)

Size

S

M

L

XL

A

Seat Tube Length

400 mm

400 mm

400 mm

400 mm

B

Top Tube Length

575 mm

595 mm

620 mm

645 mm

C

Bottom Bracket Drop

-20mm

-20mm

-20mm

-20mm

D

Bottom Bracket Height

350 mm

350 mm

350 mm

350 mm

E

Chainstay Length

450/455/460 mm

450/455/460 mm

450/455/460 mm

450/455/460 mm

F

Seat Tube Angle, Actual

69°

69°

69°

69°

G

Seat Tube Angle, Effective

77°

77°

77°

77°

H

Head Tube Angle

63.5°

63.5°

63.5°

63.5°

I

Fork Offset

56 mm

56 mm

56 mm

56 mm

J

Wheelbase

1260 mm

1270 mm

1295 mm

1320 mm

K

Head Tube Length

110 mm

110 mm

110 mm

110 mm

L

Reach

430 mm

450 mm

475 mm

500 mm

M

Stack

632 mm

632 mm

632 mm

632 mm

RESOURCES

Spare Parts
Suspension Setup

SIZE GUIDE

Bike Size Guide (Click on image to zoom in)
