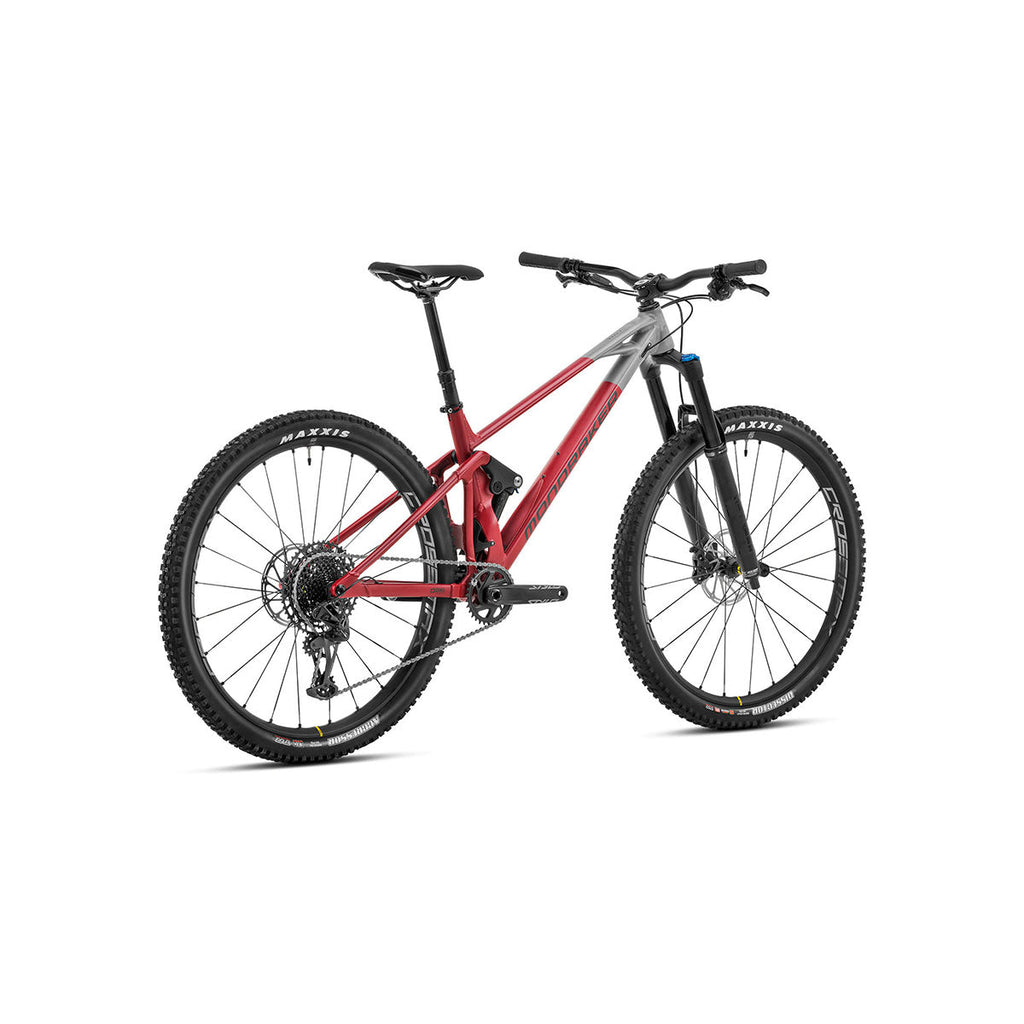

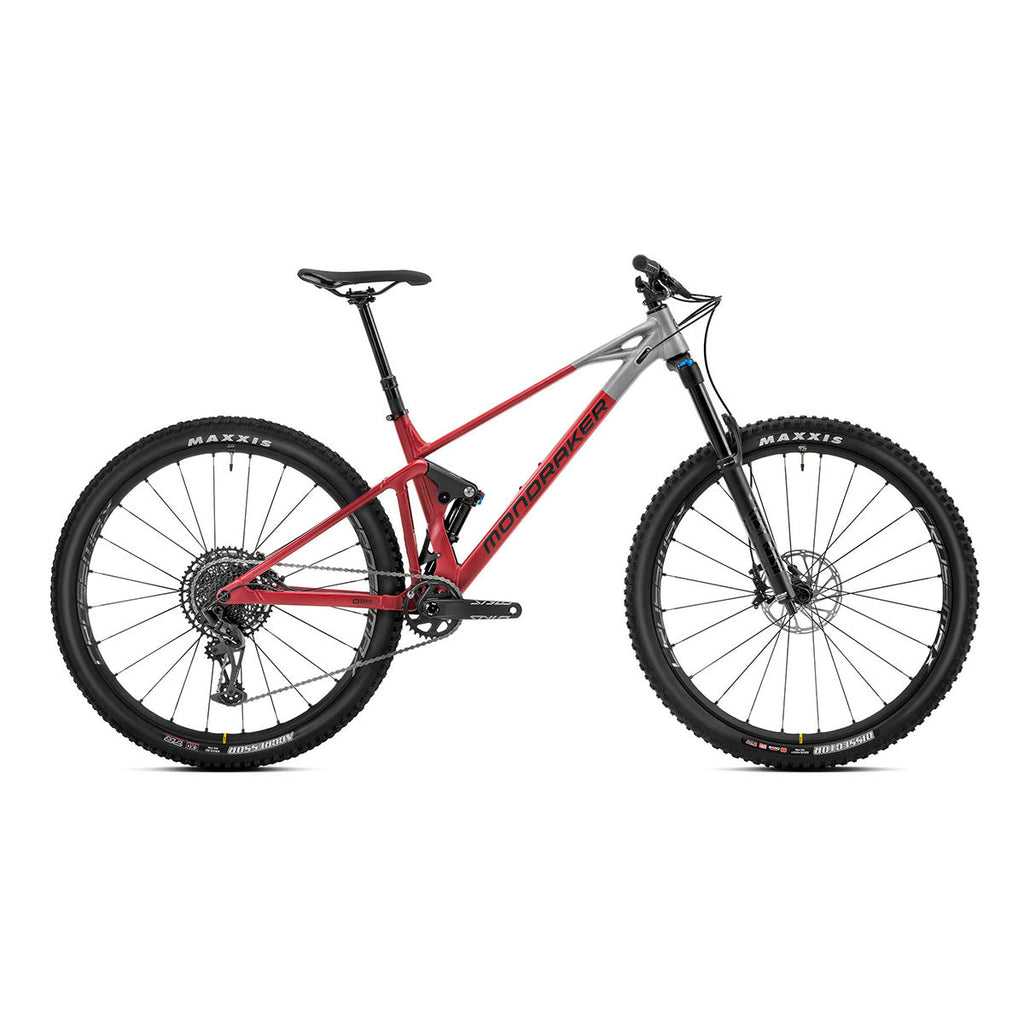

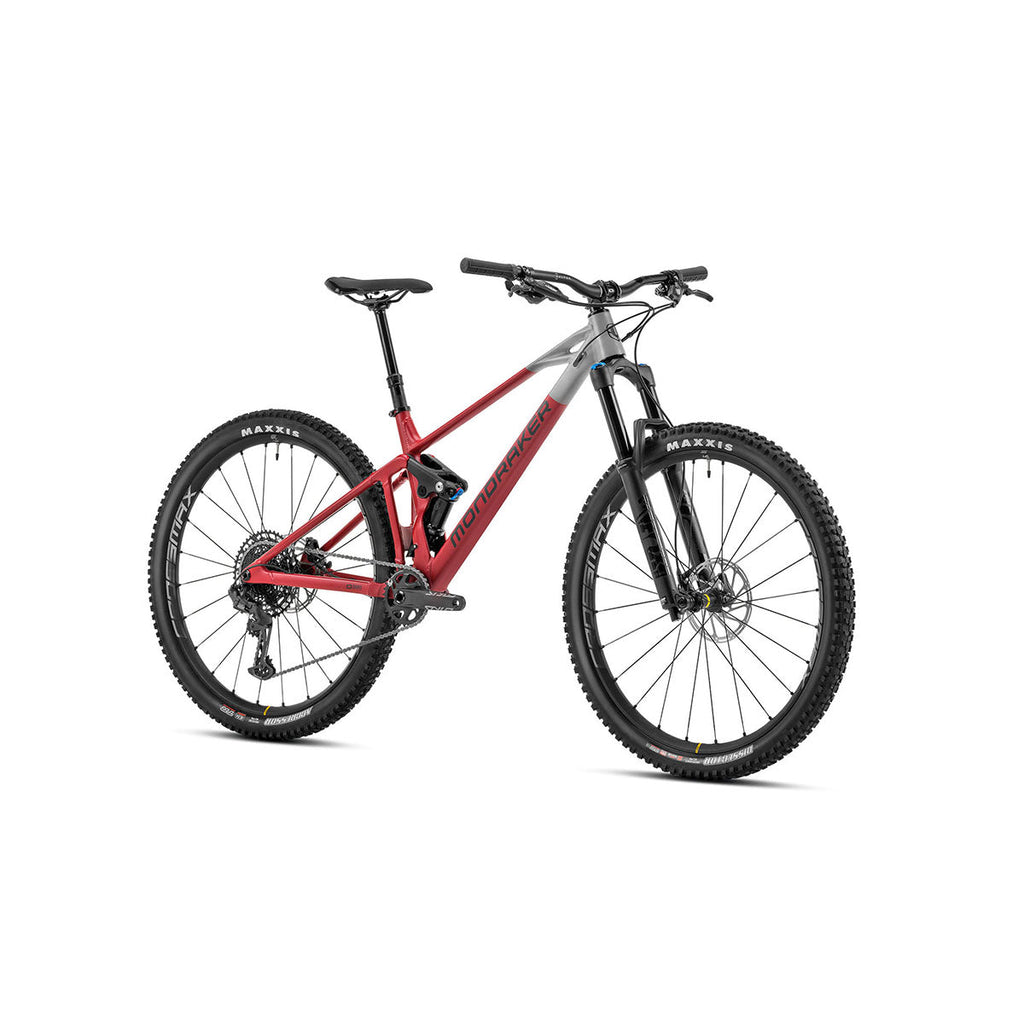

Mondraker - RAZE R Bike - Red/Grey (TRAIL)

Mondraker  |  SKU: MOND-B-Raze-R-Red23-XL
$3,299.00 USD $5,999.00
Shipping calculated at checkout.

Size
Color: Red-Grey

Unlock special deals!
Call us at 1-805-707-2777 🤩


NOTE:
For inquiries, please call us at 805-707-2777.


DESCRIPTION

Size: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Matte Cherry Red / Nimbus Grey

Raze R offers all the benefits of Raze Carbon model with a stealth alloy frame. Race R has all the advanced Mondraker features such as Forward Geometry, and Zero Suspension system in an affordable price range. The combination of features makes it the bike of choice for both ups and downs.

Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.

The durable stealth alloy frame helps with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

SIZES

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

REAR SHOCK

Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings

SHOCK SETTINGS

Light compression, light rebound, air volume spacer 0.6

FORK

Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload

HEADSET

ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

STEM

ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

HANDLEBAR

ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

GRIPS

Onoff Twin, 1lock-on, 135mm

SEATPOST

ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

SADDLE

MDK series PU 2023

FRONT BRAKE

Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

REAR BRAKE

Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

BRAKE LEVER

Sram G2 R, tool-free reach adjust

RIMS

Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

SPOKES

24 straight-pull double butted spokes

FRONT HUB

Infinity hub, Boost 15x110mm, IS 6 bolts

REAR HUB

Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts

FRONT TIRE

Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

REAR TIRE

Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

CRANKSET

Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

RINGS

32T, CNC-machined alloy, X-SYNC 2

BOTTOM BRACKET

Sram DUB BSA, sealed bearings, 73mm

PEDALS

-

CHAIN

Sram SX Eagle, 12s, Powerlock

FRONT DERAILLEUR

-

REAR DERAILLEUR

Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

SHIFT LEVERS

Sram Trigger NX Eagle, 12s, X-Actuation 1:1

CASSETTE

Sram PG-1210, 11-50T, 12s

MOTOR

-

BATTERY

-

DISPLAY

-

DERAILLEUR HANGER

Sram UDH

OTHERS

-

WEIGHT

-



GEOMETRY

MEASUREMENTS / GEOMETRY (Click on image to expand)

Mondraker Raze 2023 Bike Geometry

Size

S

M

L

XL

A

Seat Tube Length

375 mm

415mm

445mm

490mm

B

Top Tube Length

594 mm

614 mm

638 mm

658 mm

C

Bottom Bracket Drop

29 mm

29 mm

29 mm

29 mm

D

Bottom Bracket Height

340 mm

340 mm

340 mm

340 mm

E

Chainstay Length

435 mm

435 mm

435 mm

435 mm

F

Seat Tube Angle, Actual

72°

72°

72°

72°

G

Seat Tube Angle, Effective

77°

77°

77°

77°

H

Head Tube Angle

65.5°

65.5°

65.5°

65.5°

I

Fork Offset

44 mm

44 mm

44 mm

44 mm

J

Wheelbase

1197 mm

1216 mm

1246 mm

1266 mm

K

Head Tube Length

100 mm

100 mm

120 mm

120 mm

L

Reach

450 mm

470 mm

490 mm

510 mm

M

Stack

623 mm

623 mm

641 mm

641 mm



RESOURCES

Spare Parts
Suspension Setup

SIZE GUIDE

Bike Size Guide (Click on image to zoom in)
