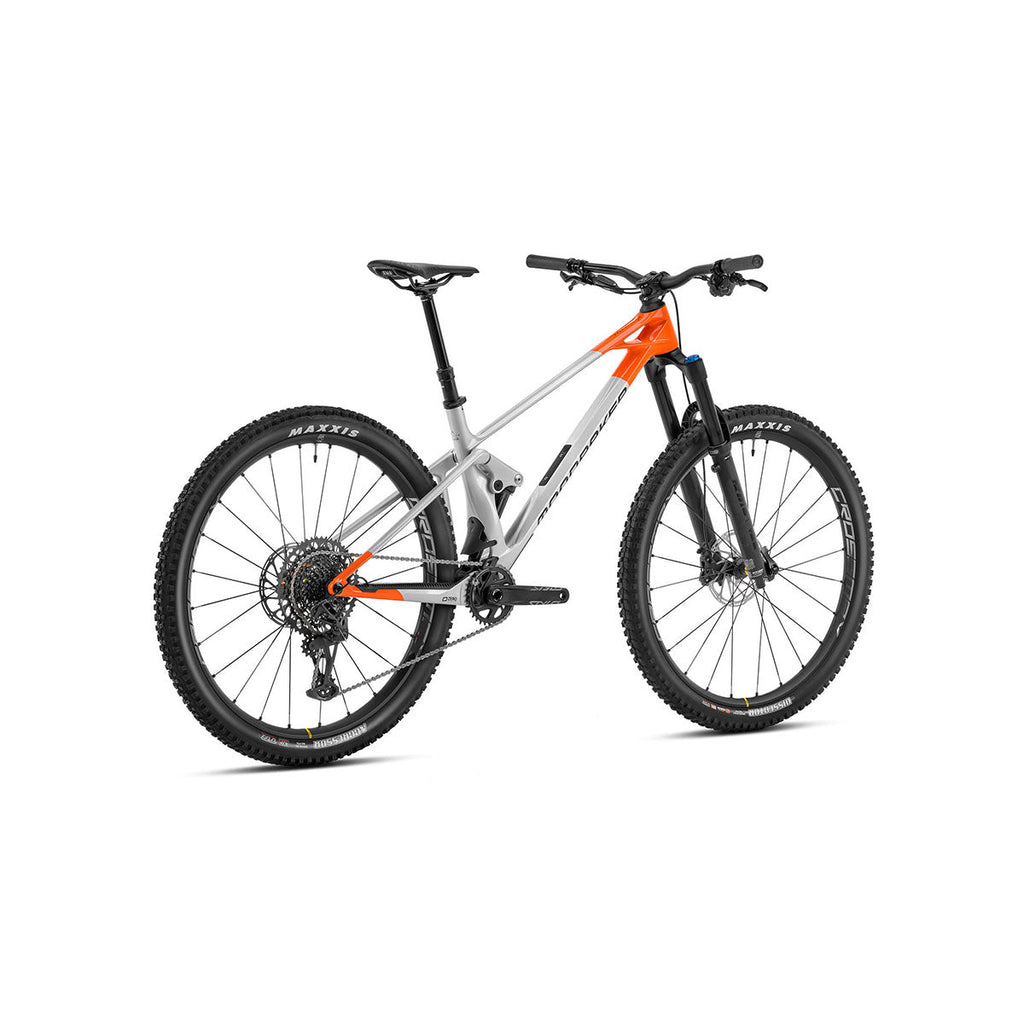

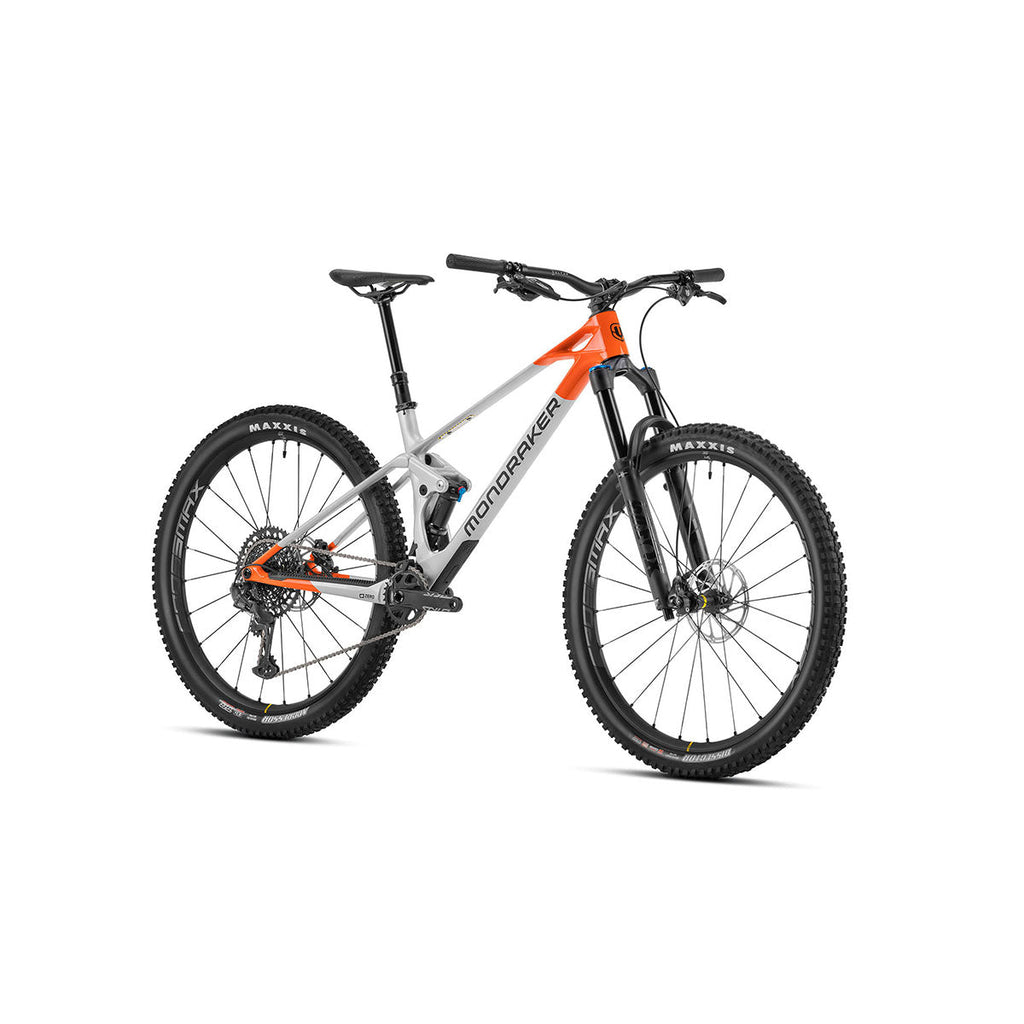

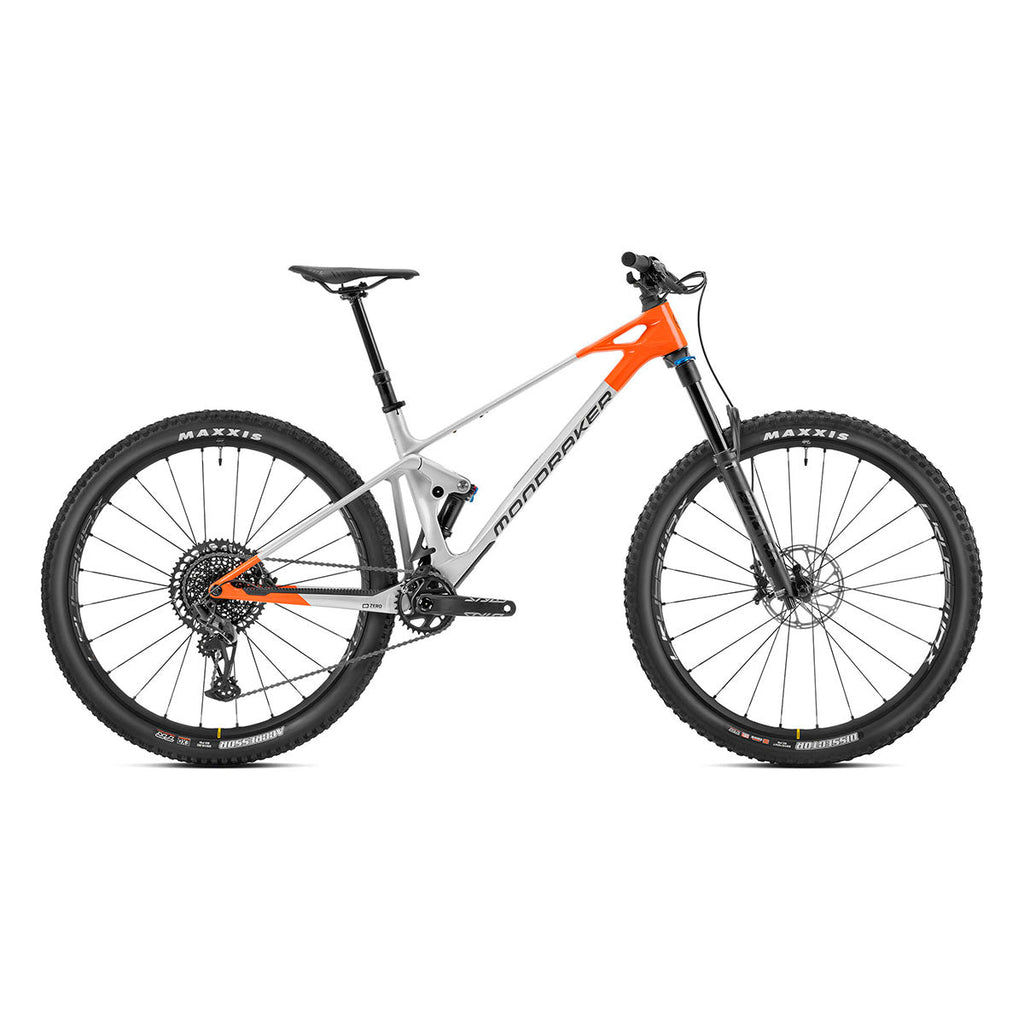

Mondraker - RAZE CARBON R Bike - Silver/Orange (TRAIL)
For inquiries, please call us at 805-707-2777.
DESCRIPTION
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Colors: Gloss Racing Silver / Orange
Raze is more than a conventional trail bike, which combines traits of XC and Enduro into one model.
The compact and lighter stealth full carbon frame and HHG internal cable routing help with resistance and mobility for better speed and performance. Mondraker’s proprietary Stealth carbon construction uses specific positioning and direction of carbon fibers to optimize benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.
High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.
Raze Carbon uses an enhanced zero suspension that helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
FRAME |
Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. Optional MIND System (EU only) |
SIZES |
S: 380mm / M: 420mm / L: 450mm / XL: 500mm |
REAR SHOCK |
Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings |
SHOCK SETTINGS |
Light compression, light rebound, air volume spacer 0.6 |
FORK |
Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
HEADSET |
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
STEM |
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
HANDLEBAR |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
GRIPS |
|
SEATPOST |
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
SADDLE |
Fizik Antares R7 |
FRONT BRAKE |
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
REAR BRAKE |
Sram G2, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
BRAKE LEVER |
Sram G2, SwingLink, tool-free reach adjust |
RIMS |
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
SPOKES |
24 straight-pull double butted spokes |
FRONT HUB |
Infinity hub, Boost 15x110mm, IS 6 bolts |
REAR HUB |
Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts |
FRONT TIRE |
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
REAR TIRE |
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
CRANKSET |
Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
RINGS |
32T, CNC-machined alloy, X-SYNC 2 |
BOTTOM BRACKET |
Sram DUB BSA, sealed bearings, 73mm |
PEDALS |
- |
CHAIN |
Sram NX Eagle, 12s, Powerlock |
FRONT DERAILLEUR |
- |
REAR DERAILLEUR |
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
SHIFT LEVERS |
Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
CASSETTE |
Sram XG-1275, 10-52T, 12s |
MOTOR |
- |
BATTERY |
- |
DISPLAY |
- |
DERAILLEUR HANGER |
Sram UDH |
OTHERS |
- |
WEIGHT |
13.5 kg |
GEOMETRY
MEASUREMENTS / GEOMETRY(Click on image to expand)
Size |
S |
M |
L |
XL |
|
A |
Seattube Length |
375 mm |
415 mm |
445 mm |
500 mm |
B |
Top tube Length |
595 mm |
620 mm |
645 mm |
670 mm |
C |
Bottom Bracket Drop |
-30 mm |
-30 mm |
-30 mm |
-30 mm |
D |
Bottom Bracket Height |
343 mm |
343 mm |
343 mm |
343 mm |
E |
Chainstay Length |
435 mm |
435 mm |
435 mm |
435 mm |
F |
Seat Tube Angle |
71° |
71° |
71° |
71° |
G |
Effective Seat Tube Angle |
76.5° |
76.5° |
76.5° |
76.5° |
H |
Headtube Angle |
65.5° |
65.5° |
65.5° |
65.5° |
I |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
J |
Wheelbase |
1193 mm |
1217 mm |
1243 mm |
1269 mm |
K |
Headtube Length |
90 mm |
100 mm |
115 mm |
130 mm |
L |
Reach |
455 mm |
475 mm |
495 mm |
515 mm |
M |
Stack |
608 mm |
617 mm |
631 mm |
645 mm |
