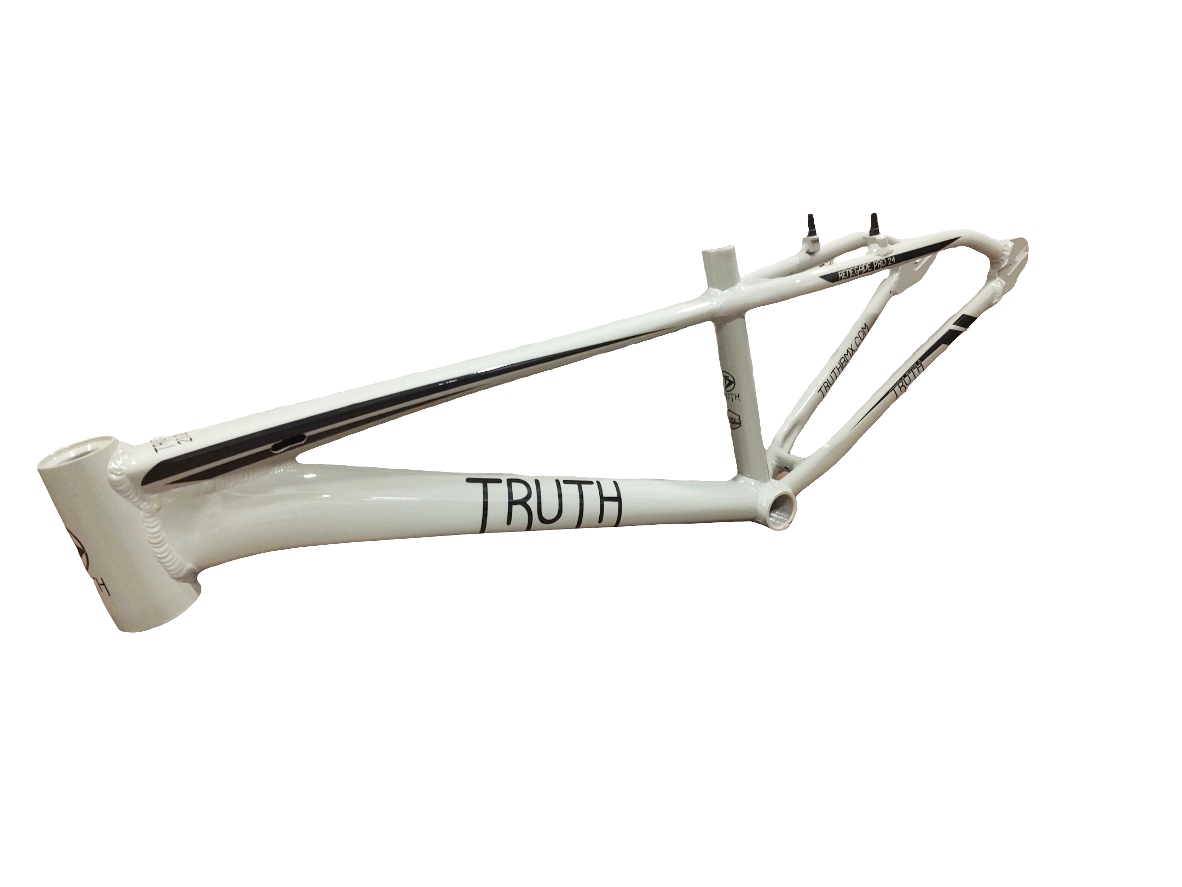

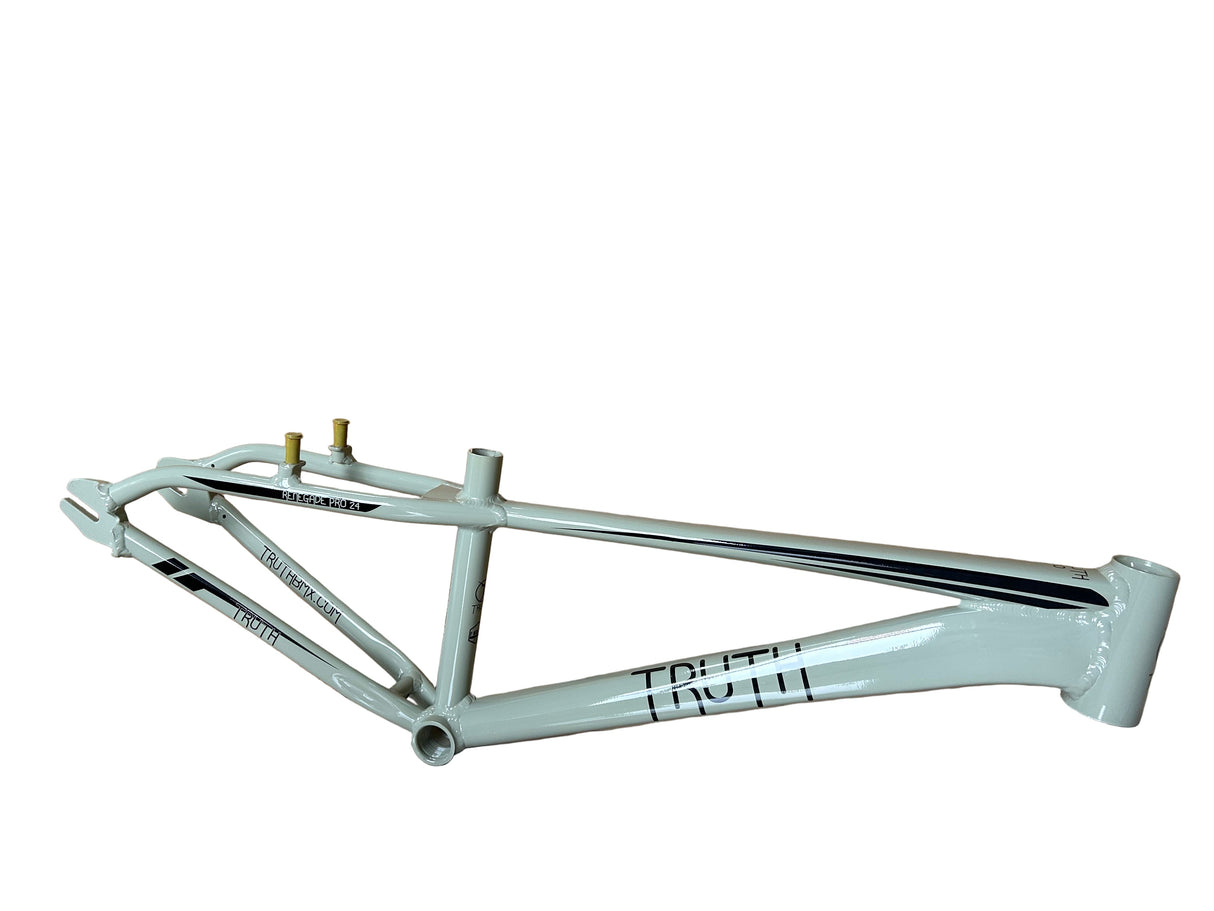

TRUTH BMX | 24" RENEGADE ALUMINUM DOUBLE BUTTED BMX RACE FRAME

The Truth Renegade frame will use the same geometry as our current race winning High end Main Event frames. The Renegade frame still uses all the latest and best manufacturing equipment and materials.

Renegade frames are hand man made from strong and light premium double butted 6061 aluminum tube set.

Features including. All new tube set that is similar to main event, newly shaped tapered headtube pro sizes, fully internal cable routing with plastic tube make cable installing easier, tapered seat post tube at bottom bracket improve stiffness for maximum power transfer to the ground, 15mm forged dropouts with 10mm adapters. Renegade frames are disc brake ready

 Frames are T4/T6 double heat treated, packed with features like our a CNC’d integrated headtube. and euro bottom bracket.

All of these new upgrades give you a strong and light high-end frame without the price tag.

With low weight, high stiffness, impressive strength, and a striking design, Truth renegade frames are the ultimate BMX race frames. Truth is redefining quality and manufacturing standards, positioning itself at the forefront of aluminum BMX race frame innovation.

Meets or exceeds ENBMX Racing testing.

Frame Geometry:

- JR: 19.50" top tube, 14.40" chainstay, 73.5° head angle, 70° seat angle, 22.2mm seat post

- EXPERT: 20.50 " top tube, 15.00" chainstay, 73.5° head angle, 70° seat angle, 22.2mm seat post

- PRO: 21.00" top tube, 15.35" chainstay, 73.5° head angle, 70° seat angle, 27.2mm seat post

- PRO XL: 21.50" top tube, 15.35" chainstay, 73.5° head angle, 70° seat angle, 27.2mm seat post

- PRO XXL: 22.00" top tube, 15.35" chainstay, 73.5° head angle, 70° seat angle, 27.2mm seat post
