NOTE:

The demo bikes that we sell were used for testing and demonstration purposes and may have some signs of wear and tear. They are sold as-is, without warranty, and all sales are final. Thank you for your understanding.

Actual pictures available upon request.

For inquiries, please call us at 805-707-2777.

DESCRIPTION

Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Gloss Dirty White / Deep Purple / Flame Red

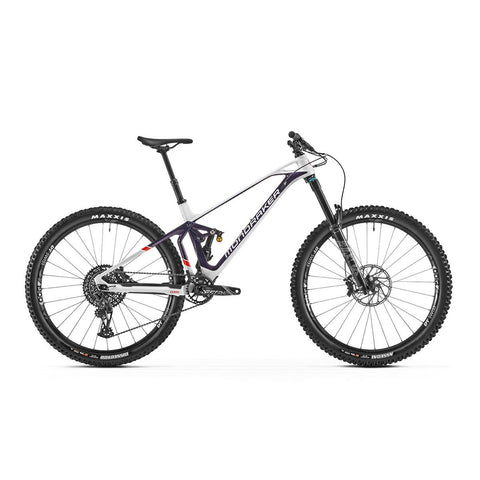

Experience the Superfoxy Carbon R difference in enduro, trail, uphill, and downhill! This top-end mountain bike boasts more travel and ultralight carbon frame for the gnarliest, hardcore trails.

Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.

The proprietary stealth carbon airframe helps with resistance and mobility for better speed and performance. Stealth Air design delivers aero-style profile, maximum stiffness, lightest weight, and superior compliance ratio, extremely important for mtb riders. With the increased stiffness and improved pedaling efficiency, Superfoxy Carbon R becomes the bike of choice for technical climbs. Stealth air construction optimizes benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.

HHG Internal Cable Routing helps with a minimalistic, clean design with noise control features. Superfoxy 2021 features super-boost rear axle and enduro sealed bearings to withstand the rigors of demanding trails. Superfoxy Carbon R is loaded with features such as shock mudguards and dedicated 1X drivetrain for better traction and momentum.

Superfoxy goes above and beyond with more exclusive features like custom frame protectors to soak up vibrations and noise for quieter rides and BSA bottom bracket for improved brake efficiency and noise control. One-piece full-carbon upper link offers better lateral and torsional stiffness to reduce lateral stress on the shock action.

Superfoxy Carbon R sports high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME	SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry,Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSAbottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealedbearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry Kit
SIZES	S: 380mm / M: 420mm / L: 470mm / XL: 510mm
REAR SHOCK	Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speedcompression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
SHOCK SETTINGS	C20 compression, R35 rebound
FORK	Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
HEADSET	Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°,bottom 51.9x40x8x45°x45°
STEM	Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore
HANDLEBAR	Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore
GRIPS	Onoff Diamond, 1lock-on, 135mm
SEATPOST	Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm
SADDLE	SDG BEL-AIR 3.0, LPU foam, steel rails
FRONT BRAKE	Sram Code R, oversized 4-piston caliper, Centerline 200mm CenterLock, steel-backed metal sintered pads
REAR BRAKE	Sram Code R, oversized 4-piston caliper, Centerline 200mm CenterLock, steel-backed metal sintered pads
BRAKE LEVER	Sram Code R, tool-free reach adjust
RIMS	DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes
SPOKES	DT Champion, straightpull
FRONT HUB	DT 370, Boost 15x110mm, CenterLock
REAR HUB	DT 370, SuperBoost 12x157mm, 3 Pawl system, CenterLock, XD freehub
FRONT TIRE	Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
REAR TIRE	Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
CRANKSET	Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
RINGS	32T, CNC-machined alloy, X-SYNC 2
BOTTOM BRACKET	Sram DUB BSA, sealed bearings, 73mm
PEDALS	-
CHAIN	Sram NX Eagle, 12s, Powerlock
FRONT DERAILLEUR	-
REAR DERAILLEUR	Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
SHIFT LEVERS	Sram Trigger GX Eagle, 12s, X-Actuation 1:1
CASSETTE	Sram XG-1275, 10-52T, 12s
MOTOR	-
BATTERY	-
DISPLAY	-
DERAILLEUR HANGER	Mondraker M071
OTHERS	*Optional Geometry Kit: 0° headset cups and chainstay adaptor for 450mm CS length
WEIGHT	-

GEOMETRY

MEASUREMENTS / GEOMETRY (Click on image to expand)

	Size	S	M	L	XL
A	Seat Tube Length	380 mm	420 mm	470 mm	510 mm
B	Top Tube Length	603 mm	626 mm	651 mm	675 mm
C	Bottom Bracket Drop	-14 mm	-14 mm	-14 mm	-14 mm
D	Bottom Bracket Height	357 mm	357 mm	357 mm	357 mm
E	Chainstay Length	440 - 450 mm	440 - 450 mm	440 - 450 mm	440 - 450 mm
F	Seat Tube Angle, Actual	70.5°	70.5°	70.5°	70.5°
G	Seat Tube Angle, Effective	75.5°	75.5°	75.5°	75.5°
H	Head Tube Angle	65°	65°	65°	65°
I	Fork Offset	44 mm	44 mm	44 mm	44 mm
J	Wheelbase	1207 mm	1230 mm	1256 mm	1283 mm
K	Head Tube Length	90 mm	100 mm	115 mm	130 mm
L	Reach	450 mm	470 mm	490 mm	510 mm
M	Stack	605 mm	614 mm	628 mm	642 mm

SIZE GUIDE

Bike Size Guide (Click on image to zoom in)

Specs for all 2022 Bikes (Click to open in new window). Or download using the viewer below
