DESCRIPTION

Sizes: S: 390mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Gloss Nimbus Grey / Matte Carbon / Flame Red

Experience the ultimate excellence and performance in Cross-country, Marathons, and fast trails! F-Podium Carbon design has everything going on for high-speed racers - extraordinary control, traction, and uncompromised stability!

F-Podium Carbon DC uses the top of the line automotive and aerospace-grade carbon technology to design lightweight, fast and superior, race-ready bikes. By combining incredible pedaling efficiency with a high-performance suspension system, F-Podium has become the new definition of XC bikes.

Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This XCO optimized suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Extreme XC racers will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.

The proprietary stealth carbon airframe helps with resistance and mobility for better speed and performance. Stealth Air design delivers aero-style profile, maximum stiffness, lightest weight, and superior compliance ratio, extremely important for mtb riders. With the increased stiffness and improved pedaling efficiency, F-Podium Carbon becomes the bike of choice for technical climbs. Stealth air construction optimizes benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.

HHG Internal Cable Routing helps with a minimalistic, clean design. F-Podium goes above and beyond with more exclusive features like dedicated 1x drivetrain design, shock mudguards, and boost rear axle to soak up vibrations and noise for quieter rides and threaded bottom bracket for improved brake efficiency and noise control.

F-Podium Carbon DC sports an enhanced suspension with optimized system layout, kinematics, and internal and exclusive customized shocks. One-piece full-carbon upper linkage offers better lateral and torsional stiffness to reduce lateral stress on the shock action. Post mount rear brake design improves braking efficiency and minimizes vibrations.

F-Podium bikes have high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. XC riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

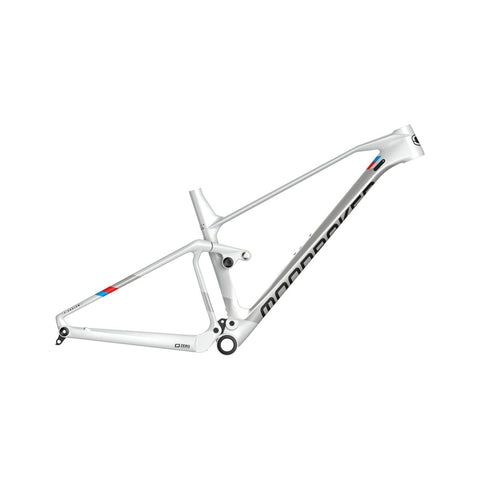

FRAME	F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 115mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
SIZES	S: 390mm / M: 420mm / L: 470mm / XL: 510mm
REAR SHOCK	Rockshox SID Select+ RLR DebonAir, 185x50mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
SHOCK SETTINGS	Light compression, medium rebound, Lockout 430, 1 Token
FORK	Rockshox SID SL Base RL 29, 120mm, DebonAir, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload
FORK REMOTE	RockShox OneLoc
HEADSET	Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom
STEM	MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
HANDLEBAR	Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9° backsweep, 0° upsweep,31.8mm barbore
GRIPS	Onoff Twin, 1lock-on, 135mm
SEATPOST	ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
SADDLE	Fizik Antares R7
FRONT BRAKE	Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
REAR BRAKE	Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
BRAKE LEVER	Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
RIMS	Mavic Crossmax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes
SPOKES	Mavic straightpull duble butted, contactless lacing
FRONT HUB	Mavic, Boost 15x110mm, IS 6 bolts
REAR HUB	Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
FRONT TIRE	Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
REAR TIRE	Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
CRANKSET	Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
RINGS	34T, steel, X-Sync 2
BOTTOM BRACKET	Sram DUB BSA, sealed bearings, 73mm
PEDALS	-
CHAIN	Sram SX Eagle, 12s, Powerlock
FRONT DERAILLEUR	-
REAR DERAILLEUR	Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
SHIFT LEVERS	Sram Trigger SX Eagle, 12s, X-Actuation 1:1
CASSETTE	Sram XG-1230, 11-50T, 12s
MOTOR	-
BATTERY	-
DISPLAY	-
DERAILLEUR HANGER	Sram UDH
OTHERS	-
WEIGHT	12.6kg

GEOMETRY

MEASUREMENTS / GEOMETRY(Click on image to expand)

	Size	S	M	L	XL
A	Seat Tube Length	390 mm	420 mm	470 mm	510 mm
B	Top Tube Length	583 mm	603 mm	629 mm	654 mm
C	Bottom Bracket Drop	-31 mm	-31 mm	-31 mm	-31 mm
D	Bottom Bracket Height	337 mm	337 mm	337 mm	337 mm
E	Chainstay Length	432 mm	432 mm	432 mm	432 mm
F	Seat Tube Angle, Actual	70.8°	70.8°	70.8°	70.8°
G	Seat Tube Angle, Effective	75.1°	75.1°	75.1°	75.1°
H	Head Tube Angle	66.8°	66.8°	66.8°	66.8°
I	Fork Offset	44 mm	44 mm	44 mm	44 mm
J	Wheelbase	1146 mm	1167 mm	1191 mm	1217 mm
K	Head Tube Length	85 mm	90 mm	100 mm	115 mm
L	Reach	430 mm	450 mm	470 mm	490 mm
M	Stack	577 mm	582 mm	591 mm	605 mm
