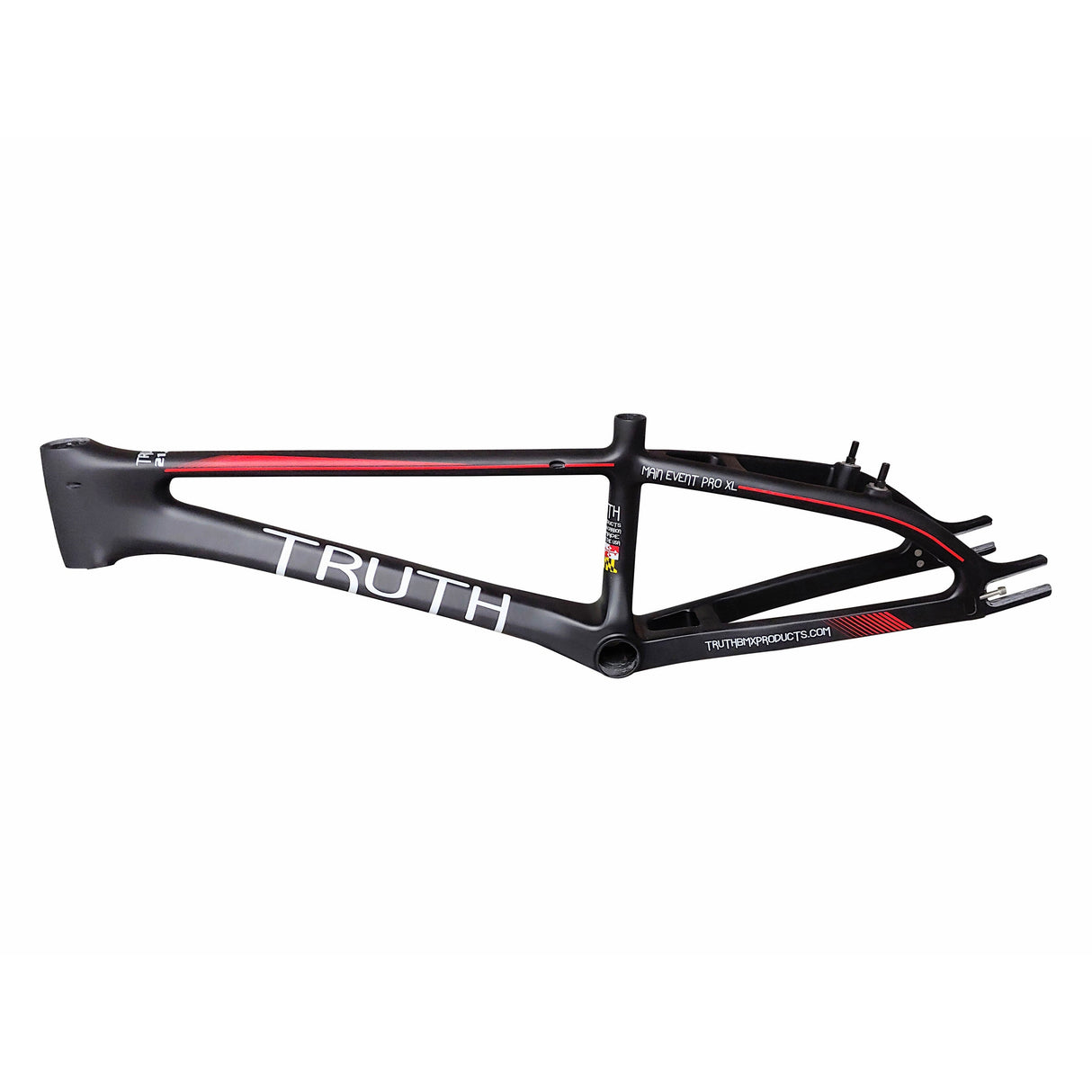

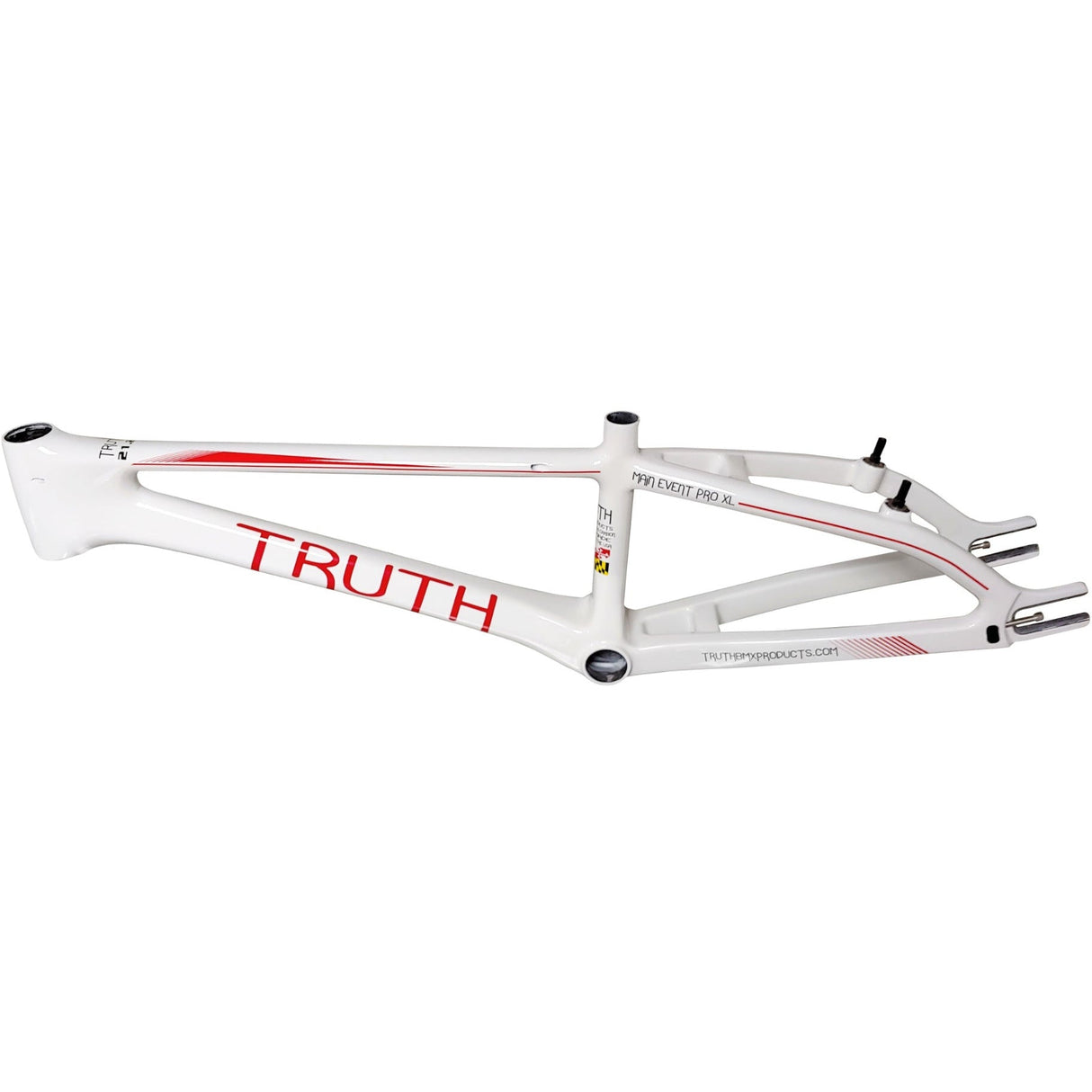

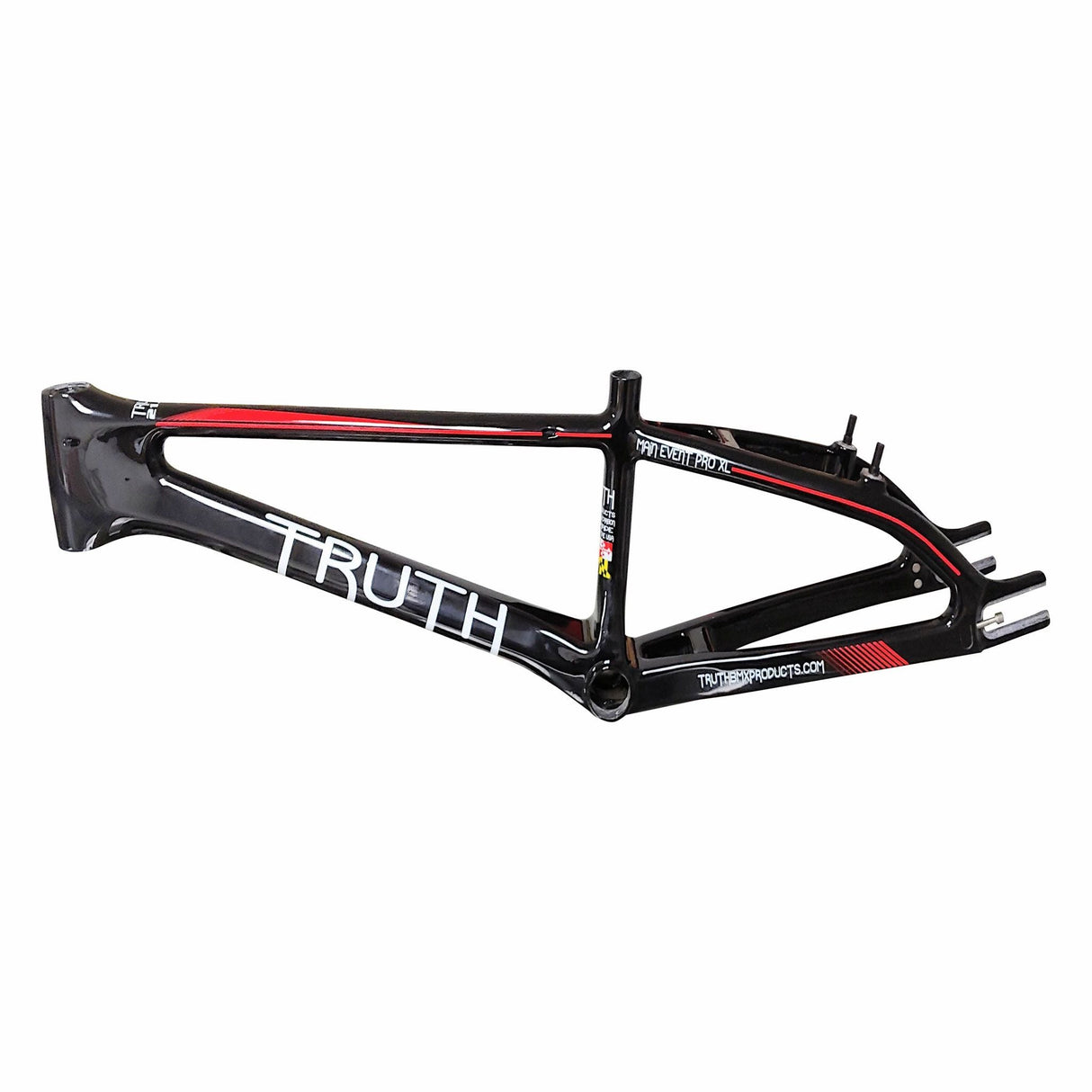

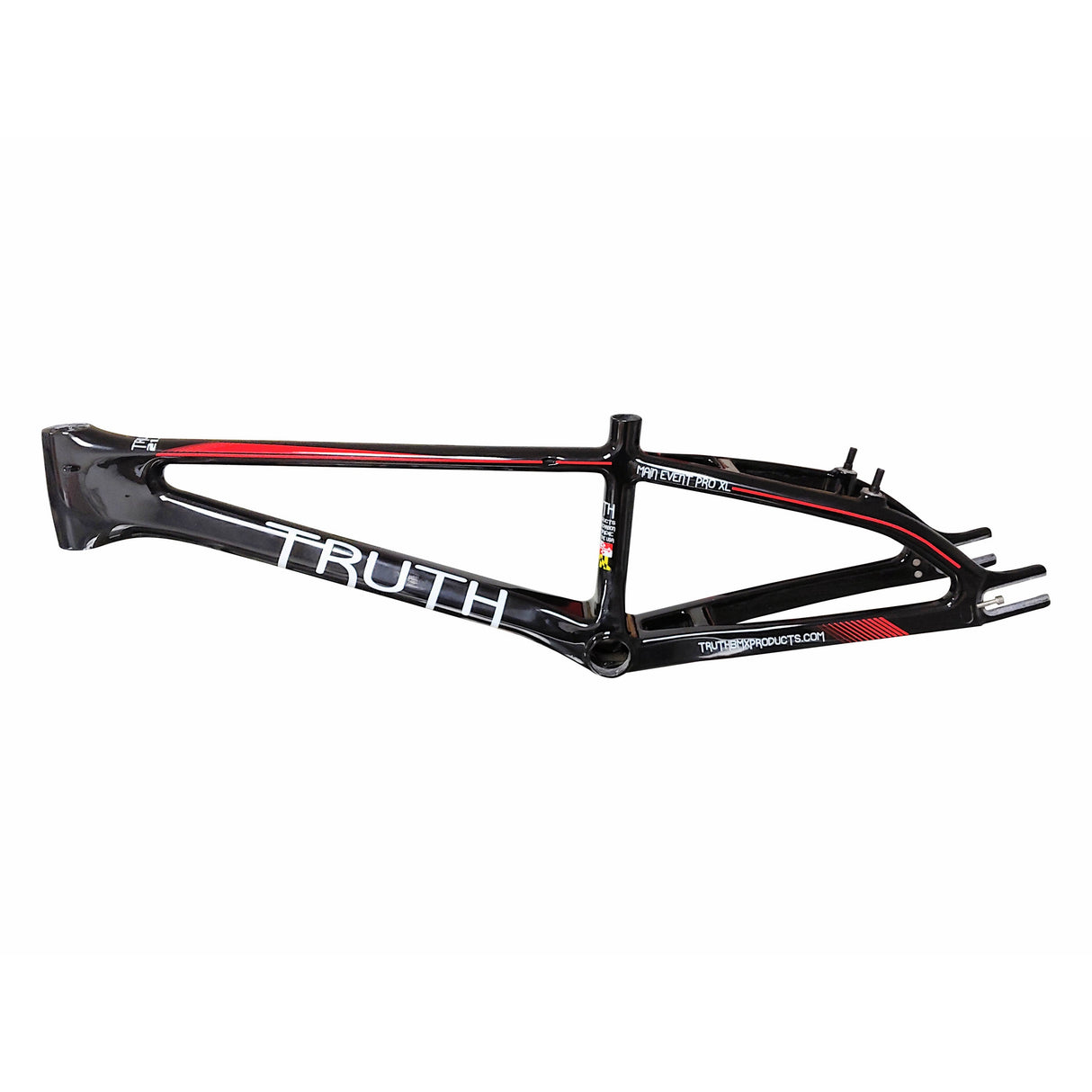

TRUTH BMX | 20" MAIN EVENT CARBON BMX RACE FRAME

The Truth Main Event Carbon frames are among the most advanced on the market, made possible by cutting-edge manufacturing equipment and materials.

All Truth BMX race frames utilize Uni-Directional Toray T1000 Carbon Fiber, the world’s leading carbon fiber producer. This results in significant performance improvements compared to Toray's T700 and T800 carbon fibers. Widely used in aerospace and other high-end applications, T1000 carbon offers weight savings and increased stiffness.

Features include a tapered seat post for better bottom bracket support and stiffness, a larger downtube area for added strength, a 1-1/8″-1.5″ tapered head tube with internal cable routing, a Press Fit BB86 bottom bracket, and 20mm dropouts with an integrated chain tensioner system. The frames also come with 10mm frame adapters.

With low weight, high stiffness, impressive strength, and a striking design, Truth carbon frames are one of the ultimate BMX race frames. Truth is redefining quality and manufacturing standards, positioning itself at the forefront of carbon fiber BMX race frame innovation.

The frames meet or exceed ENBMX Racing testing standards:

- 2 pounds 4.5 oz. Carbon clear, Pro XL

- 2 pounds 6.5 oz. Painted, Pro XL

Frame Geometry:

- MINI: 17.50" top tube, 15.20" chainstay, 74.5° head angle, 69° seat angle, 22.2mm seat post

- JR: 18.50" top tube, 13.20" chainstay, 74.5° head angle, 69° seat angle, 22.2mm seat post

- EXPERT: 19.50 " top tube, 13.75" chainstay, 73.5° head angle, 70° seat angle, 22.2mm seat post

- PRO: 20.50" top tube, 15.0" chainstay, 74.5° head angle, 70° seat angle, 27.2mm seat post

- PRO XL: 21.25" top tube, 15.20" chainstay, 74.5° head angle, 70° seat angle, 27.2mm seat post

- PRO XXL: 21.75" top tube, 15.20" chainstay, 74.5° head angle, 70° seat angle, 27.2mm seat post

- PRO XXXL: 22.25" top tube, 15.20" chainstay, 74.5° head angle, 70° seat angle, 27.2mm seat post

- PRO XXXXL: 22.75" top tube, 15.20" chainstay, 74.5° head angle, 70° seat angle, 27.2mm seat post
